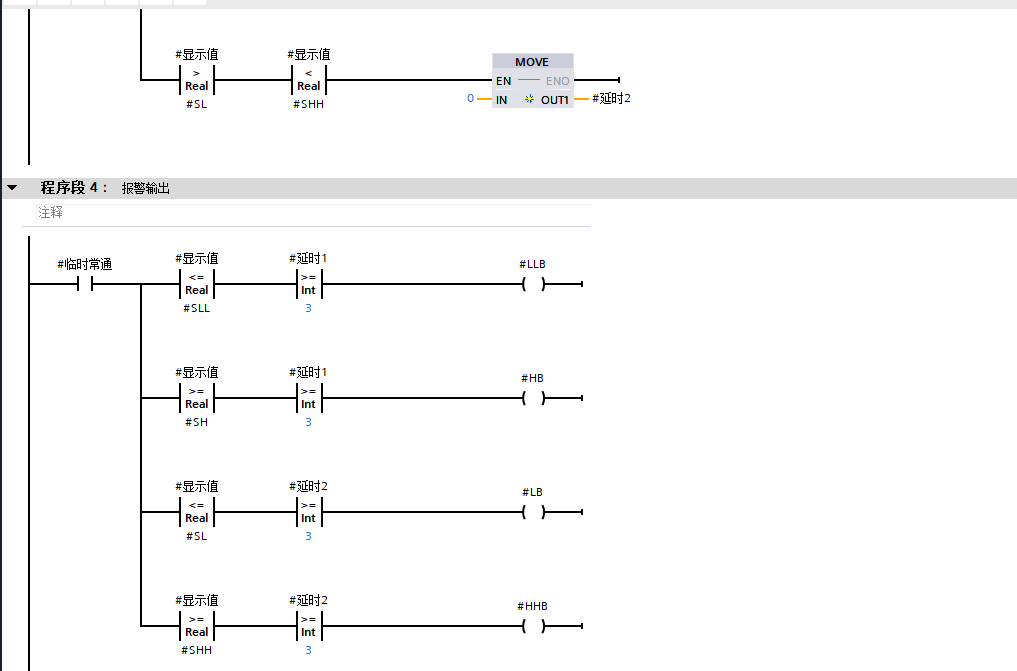

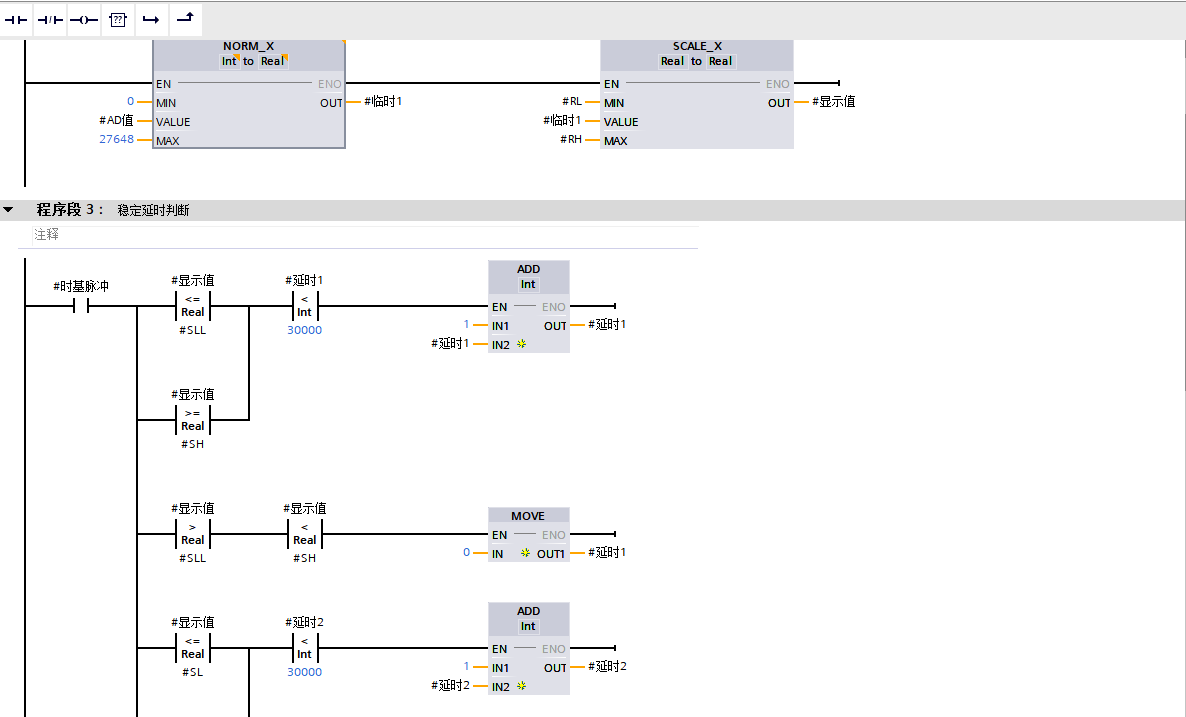

管腳上面預留基本的量程，和4個報警設定值。注意用input的話外面是可以寫定值的哦。輸出工程量顯示和對應4個報警。然后是常見的標準化和縮放。最后比較出來得出來對應4個報警值，可供程序上面應用。
如果報警需要加復位操作的話，線圈可以改成置位，然后加復位管腳來復位。
OK，寫道這里吧。功能簡單，思路清晰，可根據要求升級演化成各種版本。歡迎各位共同討論研究！

補上截圖
